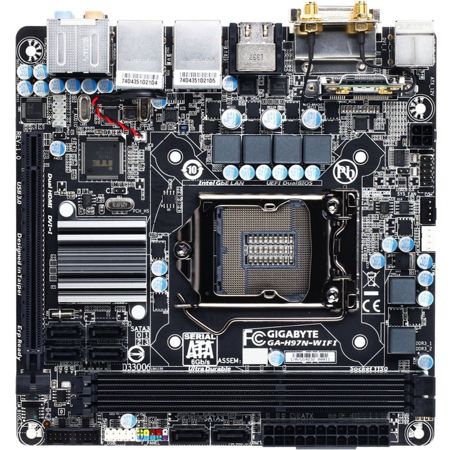

Gigabyte Ultra Durable GA-H97N-WIFI Desktop Motherboard - Intel H97 Express Chipset - Socket H3 LGA-1150 Item # 983173
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
983173
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
GIGABYTE 9 GA-H97N-WIFI motherboards support the latest Generation Intel Core processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build.
Product Details
| Item # | 983173 |
| Manufacturer # | GAH97NWIFI |
| Number of SATA Interfaces | 6 |
| Number of PS/2 Ports | 1 |
| Hardware Features | Q-Flash, All-Solid Capacitor motherboard Design, Intel Extreme Memory Profile (XMP) support, On/Off Charge, Intel Smart Response Technology, Ultra Durable, Intel Rapid Start Technology, Intel Smart Connect Technology, GIGABYTE LAN Optimizer, Intel Small Business Advantage support, ESD Protection, Intel Wireless Display (WiDi), GIGABYTE Smart Switch |
| Power Supply Supported | ATX12V |
| Memory Speed Supported | 1.60 GHz; 1.33 GHz |
| Product Series | 9 |
| S/PDIF | Yes |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
| Number of Network (RJ-45) Ports | 2 |
| Number of DVI Outputs | 1 |
| BIOS Type | AMI |
| Internal Interfaces | 2 x USB 2.0 - header ¦ 2 x USB 3.0 - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 1 x serial - header |
| Graphics Controller Manufacturer | Intel |
| Product Line | Ultra Durable |
| RAID Features | Intel Smart Response Technology |
| Audio Line In | Yes |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Number of PCI Express x16 Slots | 1 |
| Total Processor Supported | 1 |
| Total Number of PCI Express Slots | 1 |
| Graphics Memory Accessibility | Shared |
| 64-bit Processing | Yes |
| Bus Clock | 1600 MHz, 1333 MHz |
| Max Processors Qty | 1 |
| RAID Supported | Yes |
| Wireless LAN Standard | IEEE 802.11a/b/g/n/ac |
| brand name | Gigabyte |
| Number of Mini PCI Express Slots | 1 |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection |
| Audio Channels | 7.1 |
| Number of USB 2.0 Ports | 2 |
| PS/2 Port | Yes |
| DVI | Yes |
| Memory Form Factor | DIMM |
| Processor Socket | LGA1150 Socket |
| Chipset Model | H97 Express |
| Sound Controller Manufacturer | Realtek |
| Bluetooth | Yes |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 3.0 |
| Total Number of Onboard USB Ports | 4 |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
| RAID Levels | 0; 1; 5; 1+0 |
| HDMI | Yes |
| Processor Supported | Core i7; Core i5; Core i3; Pentium; Celeron; Xeon |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, Dual BIOS |
| Total Number of USB Ports | 6 |
| Onboard Audio Header | Yes |
| width | 6.7 in |
| Number of Memory Slots | 2 |
| Sound Controller Model | ALC892 |
| depth | 6.7 in |
| Product Name | Ultra Durable 9 Series GA-H97N-WIFI (rev. 1.0) Desktop Motherboard |
| Audio Codec | Realtek ALC892 |
| manufacturer | GIGABYTE Technology, Inc |
| Number of S/PDIF Out Ports | 1 |
| Audio Line Out | Yes |
| Max Size | 16 GB |
| Maximum Memory | 16 GB |
| Supported RAM Integrity Check | Non-ECC |
| controller type | Serial ATA/600 |
| Number of Onboard USB 2.0 Ports | 2 |
| Number of USB 3.0 Ports | 4 |
| Gigabit Ethernet | Yes |
| Network (RJ-45) | Yes |
| Microphone Port | Yes |
| Onboard Serial Header | Yes |
| Memory Standard | DDR3-1600/PC3-12800; DDR3-1333/PC3-10600 |
| Graphics Memory Technology | DDR3 SDRAM |
| Wireless LAN | Yes |
| Number of Total Expansion Slots | 2 |
| Chipset Manufacturer | Intel |
| Memory Technology | DDR3 SDRAM |
| form factor | Mini ITX |
| Graphics Controller Memory | 1 GB |
| Number of HDMI Outputs | 2 |
| Number of Onboard USB 3.0 Ports | 2 |
| warranty length | 3-year limited |
| Onboard S/PDIF Header | Yes |
| model name | GA-H97N-WIFI |
| Show More ▾ |
